In construction planning, the foundation plays a critical role in ensuring both safety and efficiency. A strong foundation supports structural loads and minimizes settlement that could otherwise damage the building. To achieve this, engineers rely on soil investigations. One of the most widely applied field methods in geotechnical engineering is the Standard Penetration Test (SPT).
With accurate SPT data, geotechnical engineers can design foundations that are safe, durable, and efficient in terms of both cost and time.
What Is the Standard Penetration Test (SPT)?

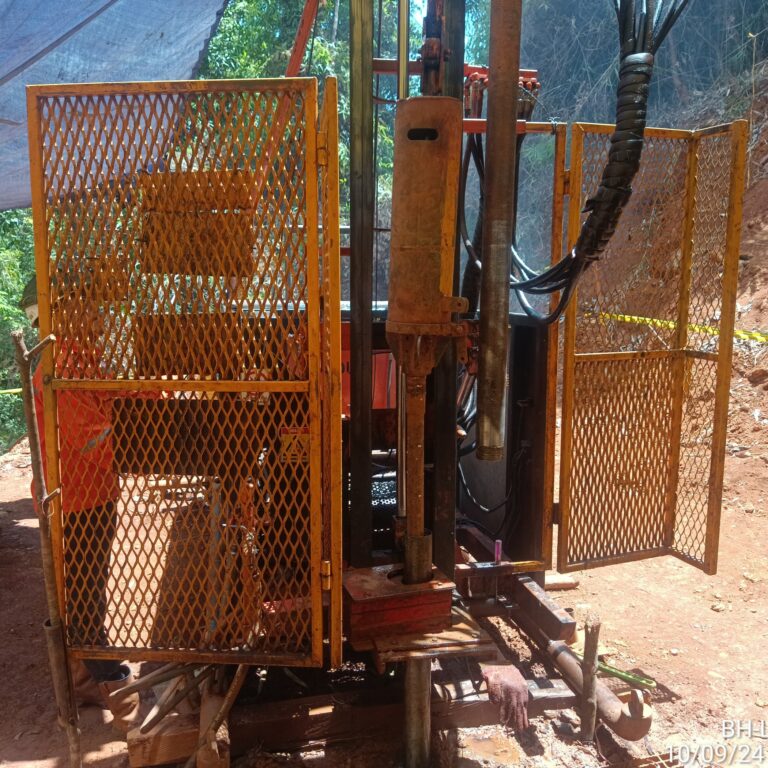

The Standard Penetration Test (SPT) is a field-based soil test used to measure soil density and strength at different depths. In this test, engineers drive a split-spoon sampler into the soil using a standardized 63.5 kg hammer dropped from a height of 760 mm.
The number of blows required to drive the sampler 30 cm into the soil—after an initial seating penetration of 15 cm—is recorded as the SPT N-value. This value is one of the most important parameters in geotechnical foundation design.
Objectives of the SPT
The SPT provides essential information for geotechnical design, including:
Determining soil density for sands, gravels, and other soil types.
Estimating soil shear strength required for foundation design.
Identifying the depth of hard soil layers to choose the proper foundation type.
Collecting soil samples for visual inspection and further laboratory analysis.
The Role of SPT Data in Foundation Design
SPT data strongly influences engineering decisions, particularly in the following ways:
Determining the Type of Foundation
When the N-value indicates stiff soil at shallow depths, engineers can use shallow foundations such as spread footings or raft foundations. However, if hard soil lies at greater depths, they must apply deep foundations such as piles.Calculating Soil Bearing Capacity
Engineers use SPT results to estimate soil bearing capacity. Therefore, they can ensure that the foundation safely carries structural loads with adequate safety factors.Predicting Settlement
By analyzing SPT data, engineers can predict soil settlement under structural loads. As a result, they minimize risks of cracks or damage to the building.Optimizing Cost and Time
Reliable SPT data helps engineers avoid unnecessary overdesign. Consequently, projects save both construction costs and completion time.
Advantages of the Standard Penetration Test
The method is simple and internationally standardized (ASTM D1586).
It provides practical and directly usable data for foundation design.
Compared to other soil tests, it is more cost-effective.
Moreover, it can be applied under various site conditions.
Limitations of the Standard Penetration Test
Results depend on equipment condition and operator skill.
It is less accurate for very soft clays or coarse gravel.
In addition, it should be combined with tests such as the Cone Penetration Test (CPTu) for more detailed results.
👉 Learn more about global testing standards at ASTM International.
Why SPT Matters in Foundation Engineering
The Standard Penetration Test (SPT) is one of the most valuable tools for designing safe and efficient foundations. When engineers properly interpret SPT results, they can design foundations that are stable, economical, and long-lasting.
Furthermore, by combining SPT with other soil investigation methods, engineers can minimize the risk of foundation failure. Consequently, buildings, bridges, and other infrastructures stand strong and resilient for decades.
